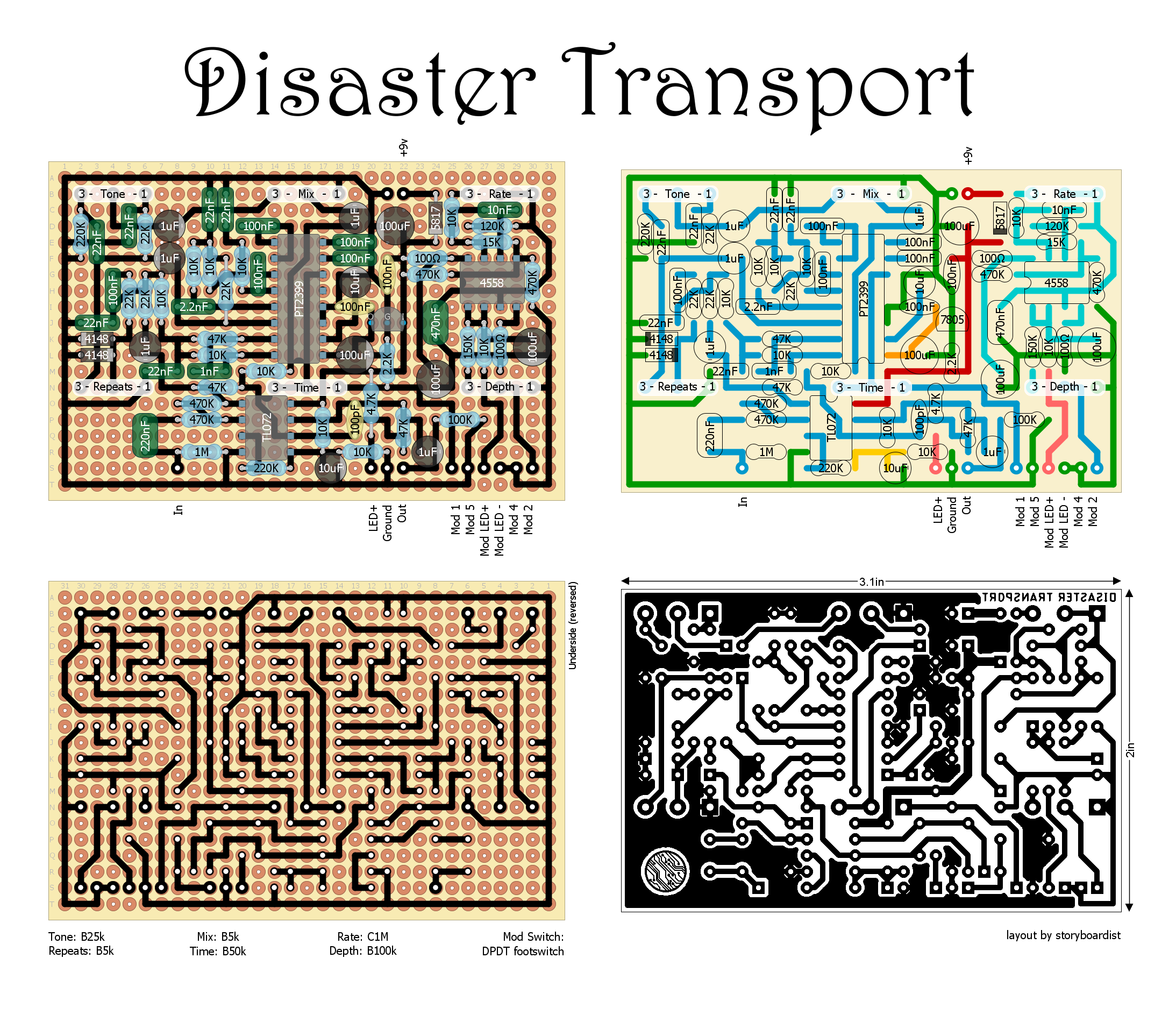

Earthquaker Devices Disaster Transport

 I traced this one a while back. It's the same delay circuit as the Disaster Transport Jr but with modulation added. It fits nicely in a 1590BB like the original. Schematic here




If you'd rather a smaller footprint I have fabricated boards for a 125B in the store.
