Seppuku Octave Drone

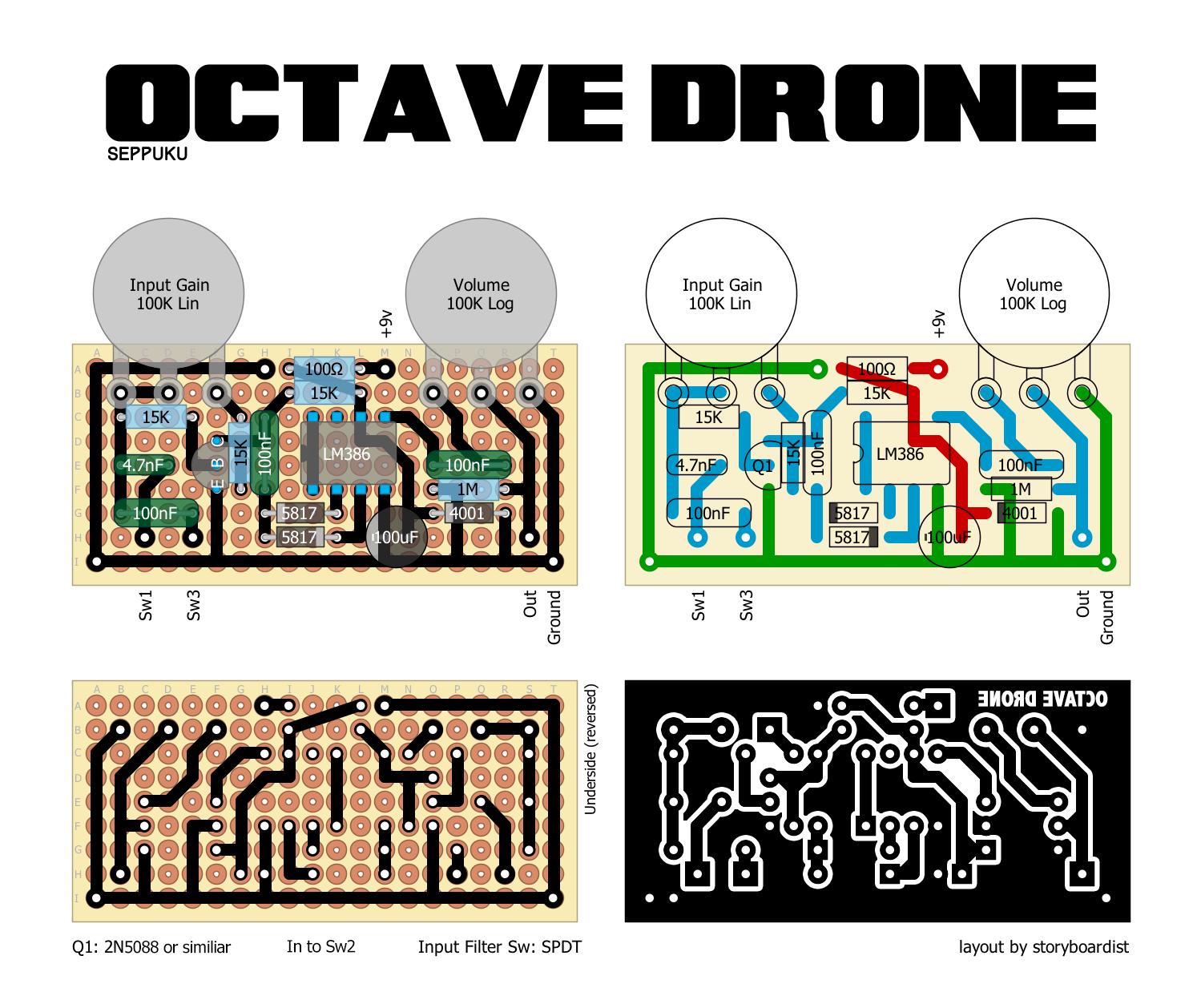

Here's the Octave Drone from Seppuku FX. Like the Space Fuzz, it too is based on the Rambler. In fact, the Octave Drone is more than half of the Space Fuzz. This has as input switch that goes between a 4.7nf cap and a 100nf cap, much like like the Hot Silicon Tonebender. You could easily replace the switch with a B100k pot (much like the Basic Audio Scarab Deluxe), to pan between the 2 caps. You can mount the pots on the component side to have the board mounted vertically inside your enclosure if you so choose. Should fit in a 1590B without issue.





at
Labels: , , ,

11 comments:

  1. FuzzDogApril 24, 2015 at 5:36 AM

    not seen the schem for this one anywhere

    ReplyDelete
    Replies
    1. dtgehringApril 24, 2015 at 9:14 AM

      It's hidden in the FSB thread on the Seppuku Space Fuzz

      http://freestompboxes.org/viewtopic.php?f=7&t=26033&start=20

      Delete
    2. FuzzDogApril 25, 2015 at 9:09 AM

      still not seeing a schem, just a layout. thanks though.

      Delete
  2. UnknownDecember 7, 2015 at 10:25 AM

    Just found this site. Really awesome! Wirking on this pedal today. Where is the input to the board?

    ReplyDelete
    Replies
    1. Effects LayoutsDecember 7, 2015 at 10:54 AM

      Thanks! Input goes to the Filter switch, lug 2.

      Delete
    2. UnknownDecember 7, 2015 at 11:25 AM

      Can't believe I missed that while looking over the layout! I see it now. Thanks for the reply!

      Delete
  3. UnknownMarch 12, 2016 at 1:30 PM

    Verified!

    ReplyDelete
  4. RobotmeisterFebruary 27, 2017 at 5:27 AM

    I built it like you suggested with the switch changed to a potmeter. Works like a dream. It's a nasty little fella.
    It picks up the octave better with my guitars than the rambler or the tentacle.

    ReplyDelete
  5. SERApril 12, 2017 at 10:14 PM

    Works like a charm! Tried 4148, LEDs, 34a and 5817, the last two were the best.
    Keep'em coming bro.
    Greetings!

    ReplyDelete
  6. rodrigosgAugust 5, 2020 at 1:32 AM

    spdt on/on/on ?

    ReplyDelete
    Replies
    1. Effects LayoutsAugust 5, 2020 at 2:13 PM

      It's an on/on. Unless I specify otherwise, you can assume switches are on/on (unless it's a SPST in which case it's an on/off cuz that's how SPSTs work).
