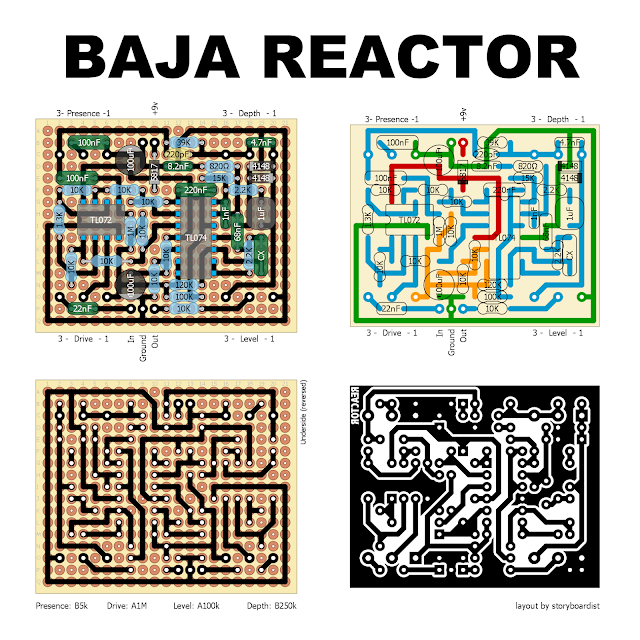

Baja Reactor

This one was requested ages ago and I got halfway through laying it out, and then promptly forgot about it. It's a power amp/speaker cabinet simulator, emulating a SLO power amp and a couple different speaker cabinets based on the value used for CX (see schematic for values). This layout follows the Rev4 schematic from the thread here on FSB.


  1. Replies
    1. Could you help with the layout of the baja reactor? I did the perf and pcb and both do not work, just a loud snoring, the only component changed was 8.2nf by 8.3nf. I can't read the schematic. thanks.

  2. can you add soome word for description about this electronic components?

  3. Hello, can I plug the output directly to a Mixing Table?
    I would like to make a amp with cab sim so I can gig without having to drag my rectifier and cab around

  4. I did the perf and pcb version, both not working, when connecting is a noise and nothing else. could someone review and find the error?

  5. Hi guys... Ive build this pedal last night and when i put power and strum my guitar it start fading until no sound. I disconnect the power and put back same scenario... Thanks for your help...
